BASIC INFO
Product overview
ABB UMC100-FBP.0 Universal Motor Controller
ABB UMC100-FBP.0 Universal Motor Controller product specification as below for your reference.
UMC100 Universal Motor Controller ATEX Replaces UMC100 1SAJ520000R0200 ATEX
IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-8
IEC/EN 60079-7
IEC/EN 60947-5-1
UL 508
CAN/CSA C22.2 No.14
Our ABB UMC100-FBP.0 product for you reference.
ABB UMC100-FBP.0
ABB UMC100-FBP.0 with original package
Need more information for ABB UMC100-FBP.0 Motor Controller, just contact us here!
Contact details
ABB UMC100-FBP.0 Universal Motor Controller
ABB UMC100-FBP.0 Universal Motor Controller product specification as below for your reference.
General Information
· Extended Product Type:UMC100-FBP.0
· Product ID:1SAJ520000R0201
· EAN:4013614480713
· Catalog Description:
· Product ID:1SAJ520000R0201
· EAN:4013614480713
· Catalog Description:
UMC100 Universal Motor Controller ATEX Replaces UMC100 1SAJ520000R0200 ATEX
· Long Description:UMC100 Universal Motor Controller ATEX Replaces UMC100 1SAJ520000R0200 ATEX
Categories
· Products » Low Voltage Products and Systems » Control Products » Motor Controllers » Universal Motor ControllersOrdering
· EAN:4013614480713
· Minimum Order Quantity:1 piece
· Customs Tariff Number:85371091· Minimum Order Quantity:1 piece
Dimensions
· Product Net Width:70 mm
· Product Net Height:105 mm
· Product Net Depth:87.5 mm
· Product Net Weight:0.36 kg· Product Net Height:105 mm
· Product Net Depth:87.5 mm
Container Information
· Package Level 1 Units:1 piece
· Package Level 1 Width:103 mm
· Package Level 1 Height:71 mm
· Package Level 1 Length:141 mm
· Package Level 1 Gross Weight:0.37 kg
· Package Level 1 EAN:4013614480713· Package Level 1 Width:103 mm
· Package Level 1 Height:71 mm
· Package Level 1 Length:141 mm
· Package Level 1 Gross Weight:0.37 kg
Environmental
· Ambient Air Temperature:
Storage -25 ... +70 °C
Operation 0 ... +60 °C
Operation 0 ... +60 °C
· Resistance to Vibrations acc. to IEC 60068-2-6:5g / 3 … 150 Hz
· Resistance to Shock acc. to IEC 60068-2-27:11 ms Pulse 150 m/s²
· RoHS Status:Following EU Directive 2011/65/EC· Resistance to Shock acc. to IEC 60068-2-27:11 ms Pulse 150 m/s²
Technical UL/CSA
· Maximum Operating Voltage UL/CSA:Main Circuit 600 V ACAdditional Information
· Degree of Protection:IP20
· Mounting on DIN Rail:
· Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
· Mounting Position:Any
· Number of Poles:3
· Pollution Degree:3
· Power Loss:Approximately 3 W
· Product Main Type:UMC100-FBP
· Product Name:Universal Motor Controllers
· Rated Control Supply Voltage (Us):24 V DC
· Rated Frequency (f):Main Circuit 50 / 60 Hz
· Rated Impulse Withstand Voltage (Uimp):
· Number of Poles:3
· Pollution Degree:3
· Power Loss:Approximately 3 W
· Product Main Type:UMC100-FBP
· Product Name:Universal Motor Controllers
· Rated Control Supply Voltage (Us):24 V DC
· Rated Frequency (f):Main Circuit 50 / 60 Hz
· Rated Impulse Withstand Voltage (Uimp):
Main Circuit 6 kV
Auxiliary Circuit 4 kV
Auxiliary Circuit 4 kV
· Rated Insulation Voltage (Ui):690 V
· Rated Operational Current AC-15 (Ie):(240 V) 1.5 A
· Rated Operational Current DC-13 (Ie):
· Rated Operational Current AC-15 (Ie):(240 V) 1.5 A
· Rated Operational Current DC-13 (Ie):
(24 V) 1 A
(125 V) 0.22 A
(250 V) 0.11 A
(125 V) 0.22 A
(250 V) 0.11 A
· Rated Operational Voltage:
· Main Circuit 690 V AC
Auxiliary Circuit 12 ... 250 V AC/DC
· Setting Range:0.24 ... 63 A
· Standards:· Main Circuit 690 V AC
Auxiliary Circuit 12 ... 250 V AC/DC
· Setting Range:0.24 ... 63 A
IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-8
IEC/EN 60079-7
IEC/EN 60947-5-1
UL 508
CAN/CSA C22.2 No.14
Our ABB UMC100-FBP.0 product for you reference.
ABB UMC100-FBP.0

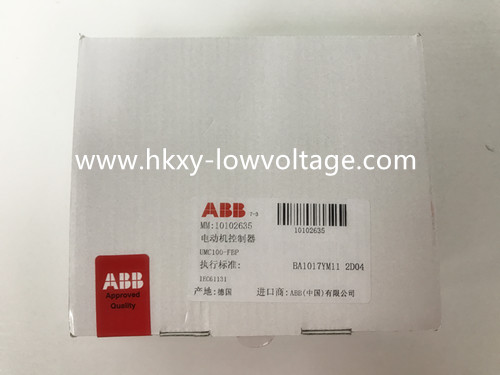

ABB UMC100-FBP.0 with original package
Need more information for ABB UMC100-FBP.0 Motor Controller, just contact us here!
Contact details
