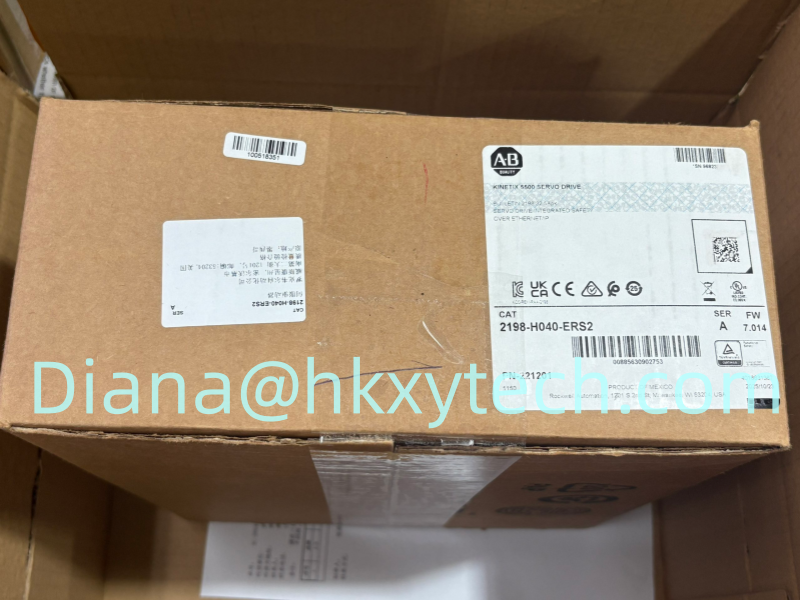

We are professional supplier for Allen-Bradley 2198-H040-ERS2 KINETIX 5500 SERVO DRIVE, please contact me if you need more details.

Product description:

• Integrated Safety: The "ERS2" suffix indicates it supports Integrated Safety over Ethernet/IP (specifically, Safe Torque-Off - STO), allowing for SIL 3 / PLe compliant safety functions without needing hardwired safety cabling.

• Ethernet/IP Connectivity: Features dual Ethernet ports to support linear, star, or Device Level Ring (DLR) topologies, allowing easy integration with CompactLogix, ControlLogix, and GuardLogix controllers.

• Single-Cable Technology: When paired with compatible Kinetix VP servo motors, the system uses a single cable for feedback, motor power, and brake.

• Compact Design: Features "zero-stack" mounting, allowing drives to be mounted side-by-side to minimize panel space.

• Flexibility: Supports standalone or shared-bus (AC or DC) configurations for multi-axis systems.



• Voltage/Power: Supports 240V (3-phase, 4.0 kW) or 480V (3-phase, 8.4 kW) input.

• Current Rating: Delivers 13.0 A (0-peak) / 18.4 A (RMS) continuous, with 32.5 A (0-peak) / 45.9 A (RMS) peak output.

• Physical: Frame Size 2, includes internal shunt, and weighs approx. 5.0 lbs (2.27 kg).
