Yokogawa YTA610 Temperature Transmitter

description:Yokogawa YTA610 Temperature Transmitter with good price...
BASIC INFO
Product overview

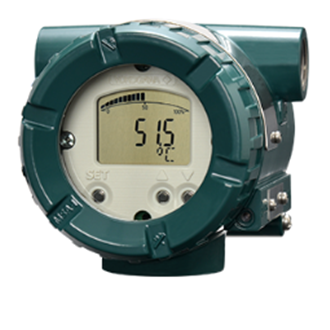

                                            Yokogawa YTA610 Temperature Transmitter

Temperature transmitters feature significant advances over the direct wired counterparts. Eliminate special cabling requirements, simplify engineering and maintenance while enabling advanced diagnostics. Yokogawa offers head-mount, panel-mount, and field-mount devices to cover different temperature applications.
                                                                      yta610

The YTA610 provides high accuracy, stability, and reliability. The housing structure adopts reliable dual-compartment structure. The sensor input can be choice of single or dual inputs. This input can accept the RTD, thermocouple, ohm, or DC millivolt. It converts the sensor input to a 4 to 20 mA DC analog signal or Fieldbus digital signal. HART® 7 Protocol or FOUNDATION™ Fieldbus ITK 6 version are available. The dual input can accept two sensors calculation of the differential or average value and the sensor backup function. Sensor backup functions for automatically switches-over from the primary to the backup upon sensor failure.
By adoption of local parameter switch on the Indicator, it becomes easy to do the on-site setting work.


YTA610 features include:

·         Dual-compartment field-mount housing

·         Choice of HART® 7, or FOUNDATION™ Fieldbus ITK 6 Protocol

·         Local Parameter Setting function (Indicator model)

·         Basic diagnosis

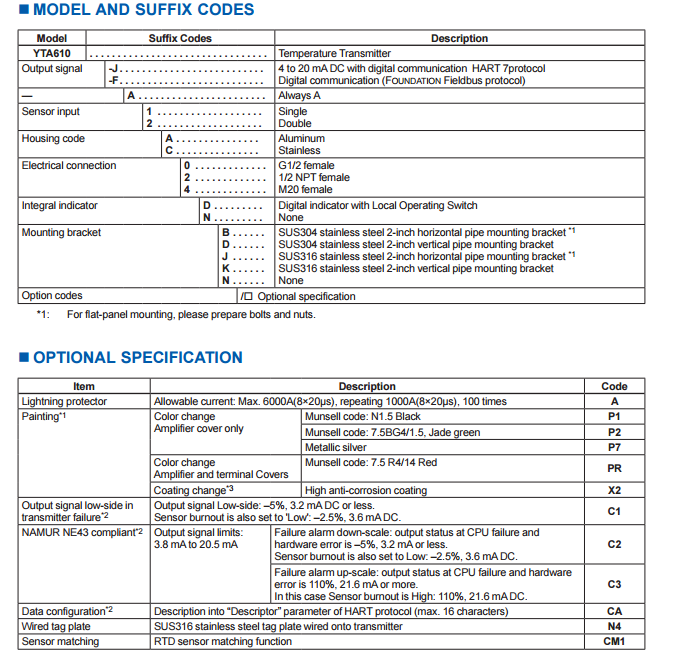

YTA610 model selection information as below
yta610-1

Yokogawa Temperature Transmitter product series overview

Yokogawa YTA50 Temperature Transmitter
The YTA50 is a 2-wire analog temperature transmitter that outputs a simple 4 to 20 mA output that correspondes to the temperature measured.

Yokogawa YTA70 Temperature Transmitter
Like the YTA50, the YTA70 is a 2-wire analog temperature transmitter that outputs a simple 4 to 20 mA output that correspondes to the temperature measured. However, it adds HART® 5 (Code -E) or selectable HART® 5 or HART® 7 (Code -J) digital communication.


Yokogawa YTA610 Temperature Transmitter
The YTA610 is Yokogawa’s essential class temperature transmitter. The dual-compartment structure allows a single or dual input with basic diagnostics on local parameter setting functions.

Yokogawa YTA710 Temperature Transmitter
The YTA710 is Yokogawa’s ultimate class temperature transmitter. The dual-compartment structure allows a single or dual input with advanced diagnostics on local parameter setting functions.

Yokogawa YTA110/310/320 Temperature Transmitter
The YTA110/310/320 series is Yokogawa's base traditional temperature transmitter in the field-mount transmitter line.
HART and Fieldbus protocol models have been discontinued.

YTA70P Temperature Transmitter
Suitable for applications requiring high-density measurement points, the YTA70P is designed to be fitted on a DIN rail mounting in a field junction box. The YTA70P is an analog temperature transmitter that outputs a simple 4 to 20 mA analog output and a HART® 7 digital output.



If you need more details about Yokogawa YTA610  product, please feel free to contact us.
