MTL5525 barrier Selection Guide for Single-Channel Intrinsically Safe Solenoid and Alarm Loops
MTL5525 barrier is a single-channel digital-output galvanic isolator in the Eaton Crouse-Hinds MTL5500 range. It enables an on/off device in a hazardous area to be controlled by a volt-free contact or logic signal in the safe area. Typical loads include suitably certified intrinsically safe solenoid valves, alarms, LEDs and low-power simple apparatus.
MTL5525 identification at a glance
| Brand / range | Eaton Crouse-Hinds / MTL5500 |
| Catalog number | MTL5525 |
| Module function | Low-power solenoid/alarm driver |
| Signal type | Digital output |
| Number of channels | One |
| Supply reference | 20–35 V DC |
| Minimum output | 7.8 V at 48 mA |
| Current limit | 48 mA minimum |
| Mounting | 35 mm T-section DIN rail |
| Indicators | Green power LED; yellow output-status LED |
The values above are selection references from Eaton documentation. Final loop approval must use the current datasheet, safety manual and relevant hazardous-area certificate together with the field-device entity parameters and cable data.

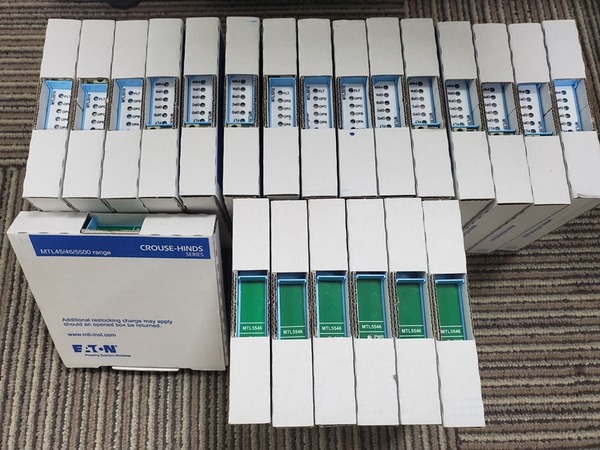

Reference image notice: the supplied photograph shows boxed Eaton MTL4500/MTL5500 range modules, and some visible labels are other MTL5500 models. It is included as a series reference image, not an exact product photograph of MTL5525 barrier. Confirm MTL5525 on the delivered module and packaging before purchase.
Where the MTL5525 fits in an intrinsically safe loop
The safe-area side of MTL5525 barrier receives the control command and power, while the hazardous-area output supplies restricted energy to the connected field load. Galvanic isolation separates hazardous- and safe-area circuitry, helping the complete loop satisfy the selected intrinsic-safety concept when every component and interconnection is correctly engineered.
Eaton lists the load location as Zone 0, IIC, T4–T6 when the connected equipment is suitably certified; North American documentation also references Division 1, Group A hazardous locations. Certification applicability varies by project and region, so model-specific certificates must be reviewed rather than inferred from the product family alone.
Output and operating data for engineering review
- Equivalent hazardous-area output circuit: 22.2 V minimum with 300 Ω maximum.
- Minimum output voltage reference: 7.8 V at 48 mA.
- Maximum current consumption: 100 mA at 24 V DC.
- Power dissipation: 1.3 W with a typical solenoid valve on; 1.9 W worst case.
- Response time: output reaches within 10% of final value within 100 ms.
- Operating-temperature reference: –20 to +60 °C.
- Safety parameters: Uo 25 V, Io 83.3 mA, Po 0.52 W and Um 253 V.
These figures help determine whether MTL5525 barrier can operate a proposed load, but an engineer must also calculate voltage available at the field device after cable resistance and confirm allowable capacitance, inductance, gas group, temperature class and certificate conditions.
Load and replacement checks before ordering
- Record the exact installed catalog number and photograph the front and side labels.
- Identify the field load: solenoid valve, alarm, LED or other certified low-power apparatus.
- Confirm the load voltage/current requirement and loop cable resistance.
- Check hazardous-area classification, gas group, zone/division and temperature class.
- Compare entity parameters and certificate conditions for the barrier, cable and field device.
- Verify terminal assignment, 20–35 V DC supply, control logic and required failure action.
- Confirm DIN-rail space, connector condition and any project-specific SIL documentation.
Do not replace MTL5525 barrier only by matching the MTL5500 enclosure shape. Nearby MTL5521, MTL5522, MTL5523, MTL5524 and MTL5526 variants have different channel, control, line-fault or output characteristics. The full catalog number and loop function must remain visible in the RFQ.
Functional-safety context
Eaton documentation identifies MTL5525 as assessed for functional-safety applications and lists SIL capability subject to the safety function, architecture, proof-test requirements and the current safety manual. A SIL marking on the module does not by itself establish the achieved SIL of the complete safety instrumented function.
Frequently asked buyer questions
What does MTL5525 do?
It drives one suitably certified low-power on/off device in a hazardous area from a safe-area switch or logic signal while providing intrinsic-safety energy limitation and galvanic isolation.
Is MTL5525 a general-purpose analog signal isolator?
No. It is a one-channel digital-output solenoid/alarm driver. Analog transmitter repeaters and other I/O functions use different MTL5500 catalog numbers.
Can MTL5525 operate any 24 V DC solenoid?
Not automatically. The field device must be suitable for the hazardous-area installation and operate within the available output after cable losses. Certification and entity-parameter checks are essential.
What should be included in a quotation request?
Provide the complete MTL5525 barrier model, quantity, field-load data, existing module photographs, supply and control details, hazardous-area classification, destination and target delivery date.
RFQ support for Eaton MTL5500 isolators
HKXY can prepare a model-specific quotation for MTL5525 barrier and review related MTL5500 modules as separate line items. Clear catalog numbers, loop drawings and field-device information help purchasing and engineering teams avoid selecting a visually similar but functionally different isolator.
