Selection Guide for Honeywell FC-RUSIO-3224 Industrial Safety System Component in Safety Manager Applications

Honeywell FC-RUSIO-3224 Industrial Safety System Component identifies Honeywell type FC-RUSIO-3224, described in the Honeywell Safety Manager hardware reference as a Remote Universal Safe I/O module. It provides 32 universal safety I/O channels and is intended for engineered safety-system applications where the exact hardware, IOTA arrangement, firmware and project configuration must be matched.

Verified product identification and technical data

Manufacturer	Honeywell
Type number	FC-RUSIO-3224
Official module description	Remote Universal Safe I/O (RUSIO-3224)
Universal safety I/O channels	32
Supply voltage	24 VDC, -15% to +30%
Maximum supply current	300 mA, excluding field load
Operating temperature outside module	-40 to +70 °C
Storage temperature	-40 to +85 °C
Relative humidity	10–95%, non-condensing
Status indication	Separate Power and Status LEDs

The 32 channels are software configurable for supported digital and analog input/output functions. Actual channel use, line monitoring, output grouping and field-load calculations depend on the Safety Builder project and the complete Honeywell hardware design; the model number alone is not a final engineering approval.

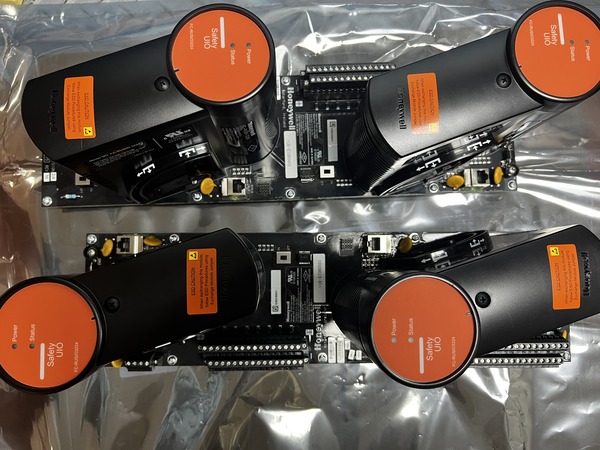

Product image supplied for model identification. Confirm the delivered revision, terminal assembly and nameplate against the purchase requirement.



How the FC-RUSIO-3224 is used in a safety system

The module forms the field I/O interface between a configured Honeywell Safety Manager system and connected instruments or final elements. Universal channels can reduce the need for multiple dedicated I/O card types, but every channel still needs the correct signal definition, power arrangement, terminal assignment and safety lifecycle documentation.

Honeywell documents dedicated Power and Status LEDs for commissioning and fault review. A steady green Power LED indicates that module power is on, while the Status LED uses color and flashing patterns to distinguish running, idle, hardware-fault, loading and stopped states. Maintenance staff should interpret these indications together with system diagnostics and the approved site procedure.

Replacement checks before ordering

1. Photograph the complete installed label and confirm FC-RUSIO-3224 character by character.
2. Record the Safety Manager or Safety Manager SC platform, system release and configured firmware context.
3. Confirm the paired IOTA or terminal assembly, connector condition, field wiring and power distribution.
4. Export or document the channel configuration, signal types, line-monitoring requirements and output loads.
5. Check cabinet environment, module temperature, available airflow and calculated internal dissipation.
6. State whether the request is for a planned spare, shutdown replacement or active fault investigation.

Do not treat Honeywell FC-RUSIO-3224 Industrial Safety System Component as a drop-in replacement based only on the front label. Safety-related replacement work should follow Honeywell documentation, site management-of-change rules and validation by qualified personnel.

Information to include in an RFQ

For a precise quotation, send the full part number, readable front and side label photos, quantity, condition requirement, destination country and target delivery date. Also include the IOTA or assembly reference, current system version and whether matching accessories or companion modules are required. HKXY can then review the requested identity and return model-specific availability information.

Official reference

Honeywell Safety Manager Hardware Reference. Technical values on this page are summarized from the manufacturer reference; the latest project documentation and delivered revision take precedence.
